Lens

Product NameModel NameSpecification / Remarks2x Telephoto LensIRL-TX02C-BField of View (F.O.V.): 12°(H) X 9°(V)Working Distance: 2m ～ ∞Measuring Range: -40 to 1500℃2x Wide Angle LensIRL-WX02C-BField of View (F.O.V.): 48°(H) X 36°(V)Working Distance: 0.1m ～ ∞Measuring Range: -40 to 1500℃52µm Close-up LensIRL-C052UCField of View (F.O.V.): 25mm X 18.7mmWorking distance: 56mmMeasuring Range: -40 to 650℃

Power Kit

R450 series is not including AC adapter, battery charger and AC cables.
Please order below “Power Kit A” with R450 series main unit.

Product NameModel NameSpecification / RemarksPower Kit B 110VPKB-110VGMFor 100V to 120V regionPower Kit B 220VPKB-220VGMFor 220V to 240V region

Accessory

‍

‍AC Adaptor      SDI50-9-UD-P14-110V / 220V

3-terminal Battery Pack2NCR18650BF-G-0077     2800mAh

3-terminal Battery ChargerBC2S1P-110V / 220V

2-terminal Battery Pack2UR18650F    2500mAh   Driving Hours: 2 Hours (typical)

2-terminal Battery Charger   NC-LSC05-110V (US) / 110V / 220V

LCD Hood   IRU-F01A

Upgrade to InfReC Analyzer NS9500 Professional   NS9500PRO UPGRADE KIT   Upgrade from NS9500Std to NS9500Pro

InfReC R450 Series : Features

User-Friendly Operation

• Rotary LCD monitor is built in for multi-angle shooting.
• View finder is built in to maintain clear visibility when outdoor.
• Easy shooting from any angle by FRZ/REC buttons placed in 2 positions.

• 5 Megapixel visible camera adds clear visible images to thermal and visible "Side-by-Side Images" and "Fusion Images".

Picture-In-Picture

Side-by-Side

Fusion

• Temperature scale and focus are automatically and simultaneously adjusted by one button on full automatic function.
  Built in high-speed motor grants swift focus adjustment.

• Very useful "Wired Remote Control Unit" is a standard accessory.

58μm Minimum Spatial Resolution at 10cm distance with SR mode

Very small objects can be measured and recorded with the combination of the R450's Standard Lens with capability to close up 10cm and Avio's "Multi-Frame Super Resolution Technology". It is possible without an optional lens.

• Minimum Spatial Resolution: equivalent to 58μm at 10cm distance <in Super Resolution (SR) mode>

Multiple Recording Modes

• Super Resolution (SR) Mode for high resolution recording.
• Quick Panorama Mode to shoot continuous wide angle images up to a maximum of 75° horizontal.
• SD Movie Mode allows taking movies with the R450Pro/R450Pro-D at a maximum 5Hz/4Hz frame rate.
• Interval recording of both thermal image and visible image simultaneously.
• Trigger input and alarm output functions are provided for use with external instruments. *1

• *1 R450Pro, R450Pro-D only

Various measurement functions

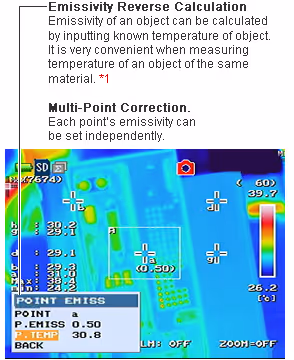

Various Mearurement Function; Max/Min Tracking, ⊿T, Emissivity Reverse-Caluculate , line profile

Simultaneously Record Real-Time Thermal and Visible Images to a PC via USB2.0

• Transfer analyzable thermal image movie data to PC at 40Hz. *2
• Transfer visible image simultaneously with thermal image to PC at 20Hz. *2
• Software "NS9500PRO" which is useful for analyzing data in real time is provided as standard accessory with R450Pro / R450Pro-D.

• *2: R450Pro only

Software

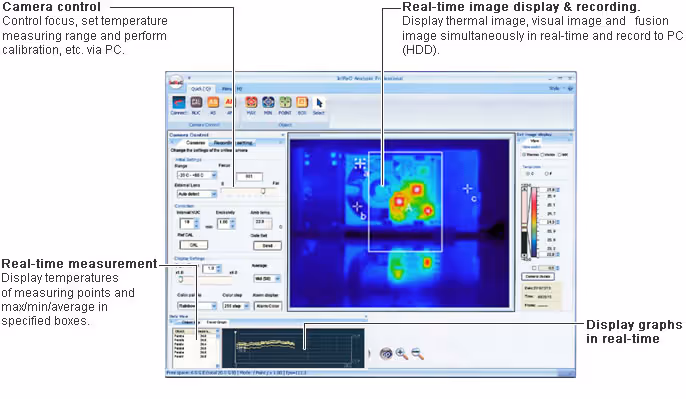

PC On-line Software "NS9500PRO (including NS9500STD)"

NS9500PRO is a standard accessory of R450Pro, R450Pro-D.

PC Analysis Software "NS9500STD"

NS9500STD is a standard accessory of R450 series.

3 kinds of graphs

Line profile

Histogram

Trend graph

Radiated heat capacity calculation

Calculate the radiated heat capacity of the specific figure domain and analyze the heat loss from the object.

Length/Square measure calculation

Input the distance to the object, and length/square measure of the setting figure on the object can be calculated.

Panoramic Thermal Image

From six (6) continuous frames a highly accurate panoramic image can be synthesized.

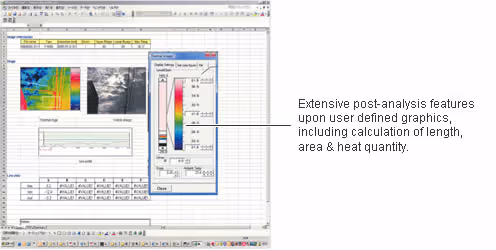

Default Report Template can be easily edited

Freely modifiable reporting formats using WORD or EXCEL allow adding company logo, etc.

Software NameModelRemarksHigh-Performance Online Analysis ProgramInfReC Analyzer NS9500 ProfessionalNS9500PROFor On-line Analysis Software (Bundled with R450Pro / R450Pro-D)(including NS9500STD)Multi-function Report Generator ProgramInfReC Analyzer NS9500 StandardNS9500STDFor Off-line Analysis Software (Bundled with R450 Series) *3

• *3: In order to transfer thermal image movie data by R450Pro, R450Pro-D, you need to upgrade to "InfReC Analyzer NS9500 Professional" (optional software).

‍
